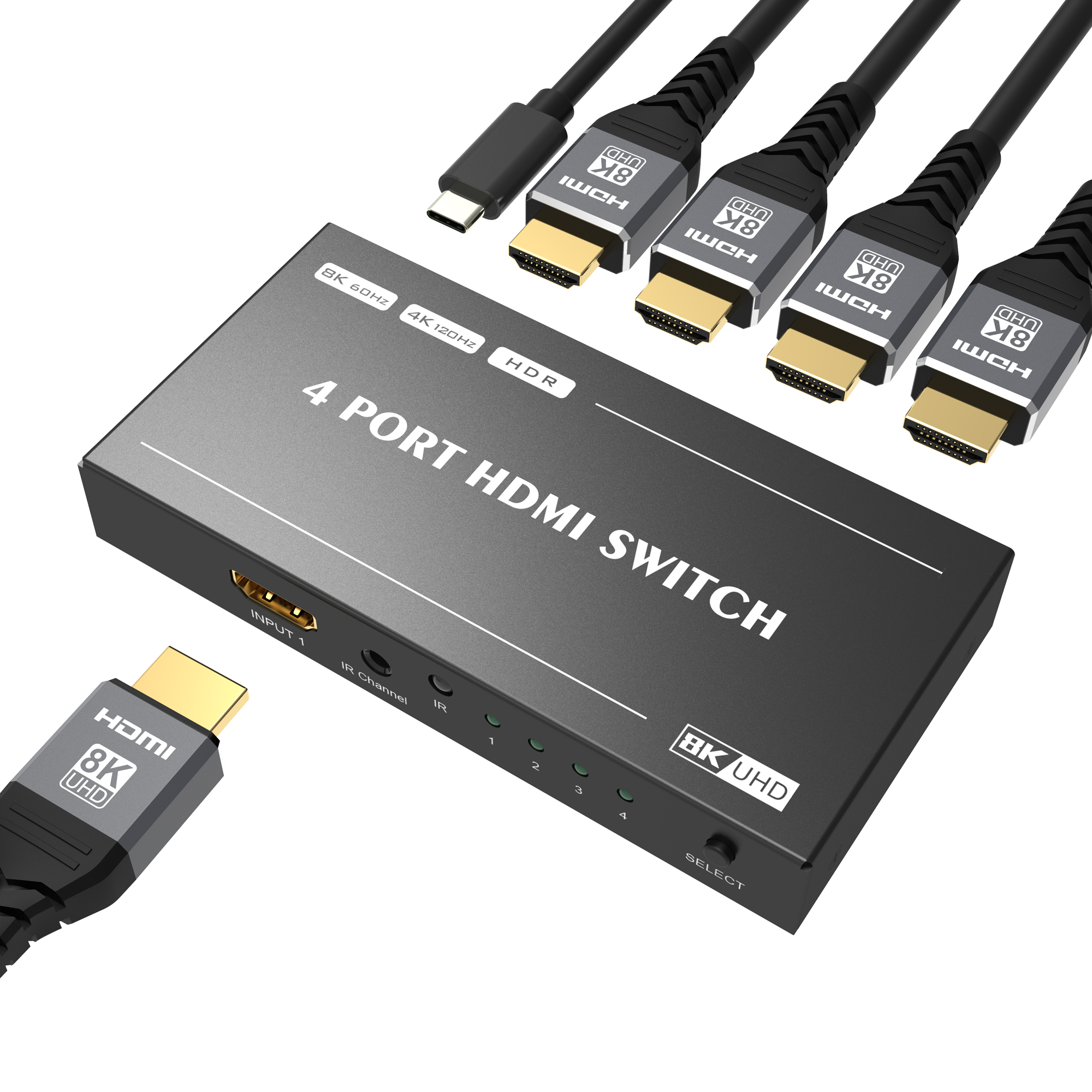

Specification of HDMI 2.1 8K 4in 1out Directional
Input(Source)Port:4xInput HDMI Female Port(Input1-4)
Output(Display)Port:1xOutput HDMI Female(Output)
BandWideth:HDMI 2.1 48Gbps
Resolution and Refresh Rate:8K@60Hz 4K@120Hz
HDR10+,3D Vision,HDCP2.3
Input Power Port:USB-C Female Portx1,equipped with USB-C to USB-A Cable to power the switcher
Operation Instruction to use our Switcher.
1:Plug Max Four of your own HDMI Cables(According the HDMI devices you
would like to connect) from our switcher's HDMI Input Ports to your HDMI
Devices,like PC,Laptop,Xbox,PS4/5 etc.Please specially pay
attention:HDMI Input 1 is in one side and the other HDMI Input ports are
in other side.
2:Plug our USB-C to USB-A Cable from the USB-C 5V/1A Port to your USB Devices to power our Switcher.
3:Plug from the HDMI Switcher's Output(Display) Port to your HDMI TVs or Monitors via your own HDMI Cablebr
4:Press"Select"Button to switch to the hdmi port you would like to
display,while one HDMI device is working,The corresponding indicator
will light up.
Important Notes While Using:
1:Our package do not contain HDMI Cables
2:The HDMI Output port for connecting to the Monitors is in the side
with the three other HDMI Input Ports.And an individual HDMI Input Port
in the Opposite Side,please specially pay attention.
3:The length of
the HDMI cables connected to both ends of the switch should not exceed 3
meters respectively.If the line is too long, it will easily cause the
screen to flicker
